Designed and
assembled in the USA
NDAA compliant
versions are available

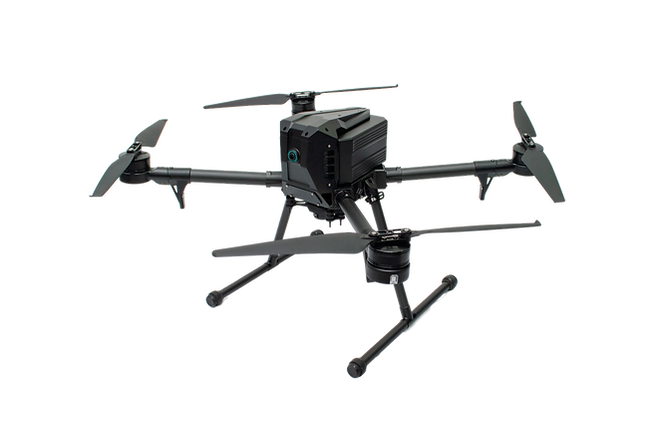

Engineered for Industrial Work
From mapping terrain to inspecting critical infrastructure, the Xplorer is purpose-built for professionals like you. Easy to use and engineered for commercial drone applications.
45 mins
Flight Time
4.5 lbs
Payload
Capacity
IP53
Ingress Protection
Wind Rating
12m/s
Advanced Features to Futureproof Your Workflow
High Prescision
RTK GNSS
Multi-Payload
Interface

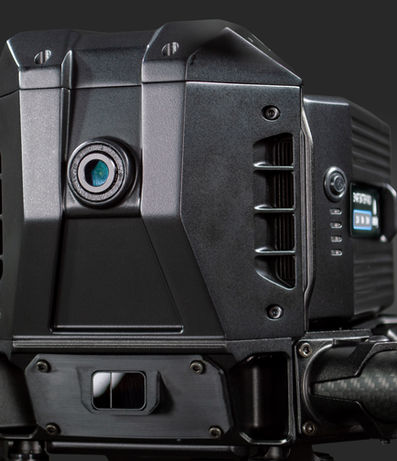

Integrated Forward
Facing Camera
Powerful Industrial
Grade Motors
Smart
Batteries
Smart batteries with built-in BMS, featuring active monitoring and cell balancing.
RTK Enabled
GNSS Onboard
Provides survey-grade precision, with accuracy down to centimeter-level. Natively supports NTRIP workflow.
Active Terrain
Following
The built-in rangefinder provides feedback to actively track terrain and correct altitude.
Obstacle
Avoidance Sensor
Built-in detection sensor to prevent collisions with unexpected obstacles.
Robust. Reliable. Mission Ready.
Designed, tested, built, and shipped from Austin, Texas. We take pride in our workmanship and attention to detail.

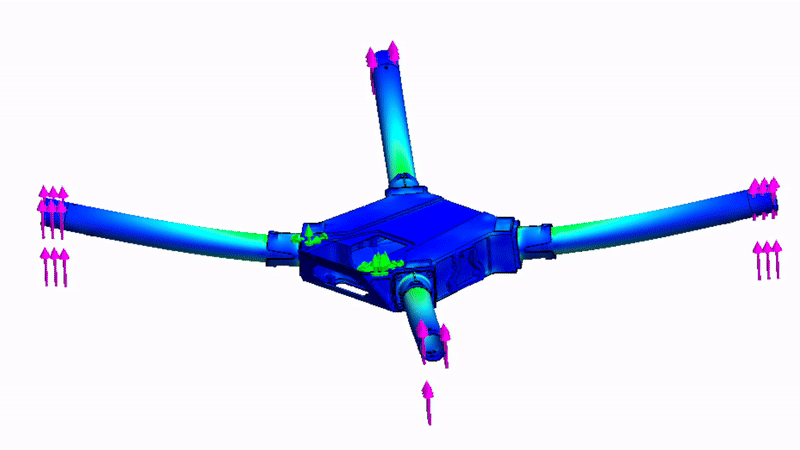

Aircraft-grade 6061 Aluminum alloy components
Single body main structure
for strength and durability.
Lightweight, high stiffness and tensile strength carbon fiber booms
Robust CAN
Communication Protocol
Built-in ESC and motor
health monitoring
_edited_edited.png)
Powerful 4.9kgf thrust per
axis for dynamic control
Industrial-Grade
Motors
Optimized for
strength and weight.
Intelligent Flight Safety
90m

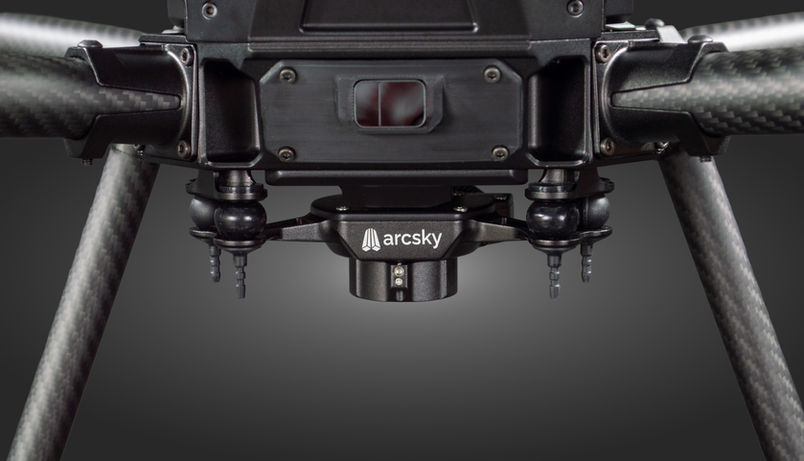

Downward facing rangefinder, with an effective range of 90m for active terrain following.
50m
Forward sensor detects objects up to 50 meters away.

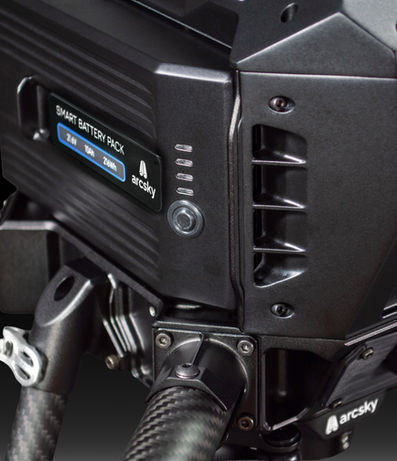

Smart Battery Technology
The Xplorer features a dual smart battery setup for both redundancy
and to enable hot swapping without powering down the system.
Status check and
battery level indication
Premium battery cells engineered for high discharge and industrial-grade performance.
Built-in heath monitoring, cycle counts and cell balancing
400
Charge Cycles
160A
Peak Discharge
216Wh
Watt-Hour
Ready for any Job Site
The Xplorer sets up in a flash. No complicated joints or tricky mechanisms. Pick it up out of the case, install batteries, and start flying.
Flight Ready in 2 Mins
Quick to Setup,
No Tools Needed.
Mil-Standard Travel Case
Weatherproof and Impact Resistant
Intuitive Control and Workflow
Fully integrated ground control station with 7" touch screen display. Plan and fly the Xplorer all in one device.
Live Telemetry Data
Update aircraft and camera settings on the fly, and monitor system status
Simple flight planning
Analyze and understand the mission before flying, including photo count, flight time, and total area
1080P 7-inch touch screen display
Access panel to HDMI output, LAN, USB
Dual scroll wheels
for gimbal control
10400mAh battery pack for continuous 6 hours of operation
Payload Ecosystem
Simple twist and release adapter to swap between different payloads, enabling seamless transitions for various industrial applications.
Sony ILX-LR1
The Sony ILX-LR1 is specifically tailored for industrial surveying and mapping. Featuring a 61MP high resolution sensor, built-in geotagging, and interchangeable lenses for different use cases.
-
Photogrammetry
-
Surveying and mapping
The Difference is in the Details.
The Xplorer is designed with precision and purpose, ensuring reliability and consistent performance where it matters most.
